1. High-tech attractive building for living, working, business and relaxing in ellipse shape
1.1. Shape, architectural style, building technology, material
The shape of the building was designed according to several criteria in order to achieve maximum position flexibility in all cardinal directions. The other criteria are: High aesthetic00000, lightness of form due to wall curvature, high static strength against lateral wind pressure, maximum use of floor space, unconventional interior design. Eight columns dividing and delimiting the outer wall surfaces give the building stability and neutralize lateral and rotational forces, which otherwise have to be stiffened with diagonal struts in such constructions. The columns, which contain various spaces, are the main supporting elements of the building. The protrusion of the columns from the walls allows for a roof protrusion that serves as rain and sun protection for the glass walls. The color coordination between the blue glass surfaces, silver metallic painted column exteriors, and white lattice sheet protective walls adds a high-end touch to the design.
Compared to a rotunda shape, the elliptical design allows for a slender structure, better interior partitioning and larger radius of exterior walls. The ellipse construction style is also repeated in interior spaces of the building. The large radius is important for the stability of the building exterior walls and exterior wall elements.
Wooden supporting structure is invisibly integrated in the building. The horizontal beams made of laminated veneer lumber are flexibly prestressed with steel bars to prevent bending. During service, the prestressing is regularly checked and retightened if necessary. The roof support beams are covered with mirrors from below, making them invisible in the room.
The outer walls are formed of wooden window frames with appropriate radius, clad on both sides with ESG flat glass panes cold-bent to the frames and glued airtight with pretension. Visible inner surfaces of the window frames are covered with a mirror-polished 0.5mm thin stainless steel sheet. The three components: Glass pane, wooden frame and the sheet cladding are glued together with a special flexible PUR glue in the thickness of 5mm. In addition to vacuum tightness, the bonding also guarantees flexibility in case of expansion of the three materials. It also provides sound and temperature insulation. The bonding contact surfaces of the glass panes are specially coated with an enamel ceramic layer applied at high temperatures to guarantee long-term stable bonding. The mirror-polished stainless steel cladding of the interior window frames guarantees vacuum tightness and makes the wooden frame visually disappear into the room, becoming invisible.
The exterior and, in some cases, the interior surfaces of the columns and also other interior walls are clad similarly to the window frames, but instead of glass panes, laminated plywood panels are used, which are painted with metallic lacquer to a high gloss. The vacuum wood frame interiors are then clad only with thin galvanized sheet metal. Interior walls, floors and ceilings in the bathrooms are covered with painted, toughened glass and underlit.
The production process of glass roof windows is similar to that of side windows. They are glued into molded roof beams in a watertight manner. The edges and the glass pane joints are glued together with water drainage edges and strips made of stainless steel sheets. Thickness of the outer glass panes is increased from 6 to 8mm compared to the window panes to provide more impact resistance. The curvature of the roof glass panes also increases the stability and impact resistance, apart from raising the visual attractiveness. Rainwater is channeled with the edge strips through the protective wall profiles into the water tanks in foundations, filtered and reused for washing the roof and garden irrigation through high-pressure nozzles.
The bottom chamber is hollow made of glue laminated wood beams and laminated plywood panels glued with flexible PUR and acrylic glue. The lower chamber is vacuum-sealed and provides insulation. Floor heating radiators and air ducts are installed in the upper chamber. Floor surface consists of two-barrier boards glued together, wood veneer on the surface. Carbon heating foils are glued in position between the two barrier plates. The floor slab rests on footings made of fit-formed concrete sections, separated with rubber expansion plate and completely bonded to the footings.
The foundations are bolted together from reinforced concrete right corner profiles and form a grid structure with eight concrete boxes under the supporting columns. Under the wooden floor slab, there are hollow chambers connected together in the grid foundation, which form an air cushion separation from the ground. In the cavities there are laid all the water, sewage, electric and air pipes. The latter lead the used air of the kitchen extractor, the house ventilation system and the exhaust gases from the mini - CHP into the foundation sidewalls, which run out underground around the house and under the driveway and entrance. The soil heating around the house, at driveway and access areas will provide improved growing climate with the waste heat and more thermal protection in winter. The foundations will also be better protected against frost in winter. The stale air is enriched with higher CO2 and NOx content and also acts as fertilizer for the planting all around.
The foundation pit is excavated to the depth of 1.2m, filled with 20cm antifreeze layer, compacted, laid with separating layer foil, leveled with a sand layer, leveled horizontally and compacted. The foundation grid is screwed together, aligned, the pipes are laid and filled up to 2/3 with coarse crushed stone as a heat storage layer.
1.2. Passive house with own energy supply
The Crystal Palais is a high-tech passive house with its own energy management. Energy efficiency is achieved in the Crystal Palais differently than in conventional construction. The complete glass cladding including the roof forms enormous potential of light and heat energy in the interior of the building, which serve as the main energy sources in the one-room house.
The vertical solar and privacy window blinds are covered with solar cells and the produced el. electricity is stored in storage batteries. The surplus is used for heating water. The shading of the glass roof is ensured by interior roof blinds made of solar foil, which also supply the house with electrical energy. The heat under the roof is extracted by air-water heat pump through integrated channels and directed to the hot water tanks in the foundations. At the same time, the system functions as an air conditioner and is fully integrated into house ventilation system. The extracted cold is also used for cold storage, which is positioned in the middle of the house
between the garage and the kitchen. The cold room is at the same time a cold accumulator and can quickly supply a lot of cold to the house ventilation system. This, in turn, is similar to the heating system and can thus quickly respond to the change in indoor temperature. The whole heating-ventilation-climate system is integrated into the building and the components are made to fit the building.
In the column foundations are installed 4 water tanks for low temperature and 4 water tanks for high temperature water with total volume of 11,5m2. All tanks are connected with pipelines and controlled with solenoid valves. As a result, the floor heating can be alternately tempered with low-temperature water as needed or quickly heated with high-temperature water, thus reacting quickly according to demand and sunshine. This saves heat energy, which would be necessary for constant tempering. The floor heating radiators are positioned in the cavity of the floor in such a way that they not only emit a radiant heat, but also function as a heat exchanger. Air is blown into the floor cavities by ventilation fans and is led into the houserooms through the dampers, usually under side windows. As mentioned above, carbon-heating mats are still glued in the floor slab, which with the surplus from the el. current allow the floor surface in the residential - exposed positions a pleasant heated surface. The carbon heating mats are also used to heat the floors, ceilings and sidewalls in bathrooms.
In addition, the house is equipped with a mini CHP, which as an additional, and also, reserve energy source, ensures the energy house management. In addition to electrical and thermal energy, the CHP generates mechanical energy necessary for the production of compressed air, vacuum and refrigeration, and supports energy needs during peak periods, such as rapid charging of electric vehicles, etc. The CHP running on bioethanol provides 30KW of mechanical energy and 60KW of thermal energy and can be additionally supported with hydrogen from its own hydrogen cell, thus reducing the consumption of bioethanol. The bioethanol is also used in open fireplaces as an additional decorative heating source.
1.3 Controlled heat, cold and sound insulation
The vacuum cavities in the windows, roof, column and partition walls and floor slab provide heat and sound insulation, which is dependent on vacuum strength. This makes the insulation controllable as needed in summer, winter, day and night. For example, the floor slab is filled with vacuum only in winter and not in summer, so that it is cooled by the ground.
The entrance doors and all windows are double-hermetically sealed with air pressure seals and allow controlled natural house ventilation. Between the air pressure seals is an insect membrane, which protects against the penetration of insects into the interior of the house.
1.4 Automation
Building automation functions as a totality of monitoring, control, regulation and optimization equipment in the building, garden, and immediate surroundings of the building. It is thus an important component of technical facility management. Functional processes are carried out independently (automatically) across all trades, according to predefined setting values (parameters), in order to simplify their operation or monitoring. All sensors, actuators, control elements, consumer and other technical units in the building, such as ventilation, heating, energy generation and distribution, are networked with each other. Processes can be combined in scenarios. A characteristic feature is the decentralized arrangement of the control units (DDC-GA) as well as the continuous networking by means of a communication network and bus system.
The power grid in the Crystal Palais is distributed in five voltage fields to ensure optimal supply with simultaneous economy and safety. The DC 24V network serves interior and exterior lighting components, all sensors, actuators, controls and control drives, and additionally all carbon heating mats installed in bathroom floors and ceilings. The DC-100V network supplies all other carbon heating mats to reduce cross-section of wiring cables. DC-400V network is used to charge electric vehicles, which are also additional power storage to increase the total storage volume of home batteries. AC 230V and 400V is responsible for all standard household appliances and power tools. The cable lines are partially integrated into the walls and floors and are connected with connectors or connected into the distribution boards during house installation. A separate network with KAT7 cable is laid for the data supply.
The complete control system is operated via a house server with fixed built-in and also with mobile control elements such as laptops, tablets, smartphones and can also be connected to remote monitoring.
The automatic house control system includes the following functions:
a. Opening, closing monitoring and locking of entrance door, garage door, all wall windows and their compressed air seals;
b. Shading with vertical blinds and roof blinds;
c. Lighting exterior, interior including light color change, lighting dimming is controlled by time, sunlight and motion;
d. Turning household appliances on and off, remote control and monitoring;
e. HVAC complete control according to time, outdoor temperature, sunlight, premises, space, energy availability;
f. Monitoring system with advance warning and storage of sounds and images inside and outside, in the environment, residential scenario replication, remote monitoring;
g. Audio and video control, house individual and group communication;
h. Energy production control and monitoring;
i. Indoor and outdoor plant watering, indoor and outdoor fountain control;
j. Roof cleaning and garden watering, access path and driveway cleaning.
1.5 Overview of new solutions
Exterior walls and roof made of large flat glass panes ESG cold bent and glued to wooden frames.
Controlled vacuum heat and sound insulation of the floor, roof, side walls and partition walls.
Windows, doors sealed with controllable compressed air seal.
Interior energy recovery of sunlight and solar heat. Vertical blinds made of photovoltaics, roof blinds made of solar film.
Combination of heat recovery with air conditioning.
Consumed air with residual heat of ventilation, kitchen hood and exhaust gases of CHP is discharged into the ground under the floor slab and house environment for heating and fertilizing.
Horizontal supporting beams with adjustable bending strength.
Ellipse building style.
2. The building as a series product with selectable accessories
2.1. Exterior color combination
The exterior wall glass panels can be combined as desired in all available float glass colors and coatings. For the model house, the discreet glass color blue without coating is selected. The exterior glass panes for bathrooms in the side columns are covered with foil with silver mirror effect to reduce transparency and to match the side walls of the columns, which are painted silver. Visibility is also reduced by protective walls in front of the columns made of white expanded metal sheet. The supporting aluminum profiles are natural anodized and create a smooth transition from white to the silver walls of the columns. The glass band between the floors is covered with mirror-effect film, as are the entrance and garage doors and the glass panels above on the upper floor. The blue effect of the side walls is emphasized by the blue solar cells on the vertical blinds. Automation eliminates the need for any hardware on the windows and doors. The narrow edge trims on the outer roof edge and the upper roof step emphasize the shape and are made of natural stainless steel.
2.2 Interior surfaces, walls, floors, design, room layout
The Crystal Palais is designed as an open-plan gallery building. The partition walls are mostly constructed of glass as sliding walls, and together with the glass roof and glass side walls, convey an unlimited living space directly in the open air. The transitional surfaces between the exterior and interior also emphasize the impression. The house access and building entrance is laid out with the same granite stone paving throughout to the living interior. In connection with the natural stone floor in the first floor living space, large-scale veneered blocking panels have a noble effect and visually enlarge the living space. The plant beds placed at side windows, connect boundlessly the interior space to the outside. Vertical blinds with solar cells ensure protection from view and shade on the outer walls, and according to your wishes, they are offered in various designs, colors, materials to choose from. Electric roof blinds made of solar film ensure privacy and shading from above, and can also be ordered in various patterns and colors. Interior walls, floors and ceilings in bathrooms covered with under-lit glass panels are printed with panoramic images to give an impression of "bathing in the open air". Gallery railings on DG are mounted from curved ESG panes and have a neutral effect in the room. Staircase made of glass lamellae is also matched to this. Wooden stair treads are alternately dark and light wood veneer framed with white high gloss plastic edges and follow the ellipse style, centrally connected with supporting elements of cut crystal glass, also in ellipse style. Floors in DG are, as well as in EG, are covered with large light wood veneered plywood panels and complete the elegance of the interior.
The garage is separated from the living room with a glass wall and connected on the dining room side with a glass door. The garage can also function as an exhibition, for example, for classic cars and thanks to two lifting platforms can accommodate up to 5 vehicles or can be designed like an orangery. The ceiling height in the garage is increased to 3.50m. Two storage rooms are integrated to the garage and to the rear kitchen wall. One of them serves as a cold room and cold storage room at the same time.
Above the garage there are two bedrooms, separated by a bearing wall, with separate bathrooms and toilets. Access to the bedrooms, as well as to the gallery, is through the so-called " café" above the kitchen. The four rooms in the attic are separated with fixed bearing wall and sliding glass walls offer excellent view not only to the outside, but also to the inside of the house. The partition between the "café" and the bedrooms is designed as a projection wall. This is visible from all sides of the living room. The space above the entrance on the gallery is open and planned as an office. Four bathrooms with toilets are integrated in the side columns in the DG. In ground floor in the right column is a guest toilet also with shower as above. In left is placed a utility room. In the garage columns there are tool and equipment rooms. It is possible to enter all four side columns also from outside. In the entrance column on the right is checkroom and on the left server-house connections-control equipment room. Above is a room for books, files, office machines and audio-video equipment. Columns in the garage entrance house heating equipment and the upper ones in the bedrooms serve as dressing rooms.
2.3. Equipment, interior decoration, fitting furniture, lighting, audio and video selection
The furnishings, like the whole building, should convey a relaxed life in the open air, provide plenty of space for living and decorate the interiors with lots of nature. There are plant beds with fruit trees, fruit bushes and flowers at the edge of the windows, a fountain in the entrance and a small vegetable garden under the interior staircase.
The interior is suitably designed in ellipse style and is offered in different colors, variations, shapes. As there are no right-angled rooms in the Crystal Palais, the furniture is also designed to fit the ellipse style, but this does not prevent it from being designed and offered in a wide variety of architectural styles, such as modern, country, futuristic, etc.
The complete lighting is based on LED technology with 24V. Due to the glass walls, the exterior decorative lighting already provides pleasant interior lighting, which offer pleasant interior light with ambient decorative lighting. Living and dining room is illuminated with the same suspended ceiling lights. The large glass panels are printed with various images and also provide cover for ventilation ducts. The attic is illuminated by lights controllably integrated in the skylight frame. The entrance and the kitchen are provided with adjustable point lighting. In the center of the living room above the stairs and the "café" hangs a large chandelier and centrally illuminates the entire living space.
Audio/video system is installed in upper part of left entrance column and operated with remote control. Surround speakers are integrated in DG floor above the entrance and the stereo listening point is set up to the "café". For video, additional loudspeaker boxes are installed under the intermediate gallery stairs. A projector can also be integrated in the chandelier.
3. Series product with complete service
3.1. Production in stock for fast delivery time
The Crystal Palais is a mass-produced house, assembled on site from as many finished components as possible in the shortest possible time. Contractors to ensure the structural requirements for the prefabricated components will do the foundation and floor work. Suppliers, most of whom are also contractors, will produce at least one kit to stock in advance during the construction season to ensure fast delivery times.
3.2 Complete construction service
Local contractors will provide a complete construction service, from lot selection, acquisition, financing, building permits, completion, to exterior landscaping and move-in, etc.
3.3. Annual customer service
The Crystal Palais is a highly technical product that requires regular prescribed customer service to ensure high quality at all times. The service works include, but are not limited to, inspection of mechanical, electrical, pneumatic and vacuum components; cleaning and lubrication, leakage testing of air-conditioning systems, compressed air lines, vacuum lines, vacuum pumps; oil change of CHP combustion engine and air compressors; all filter changes; system and software testing, exterior wall and roof cleaning and sealing, etc. Customer services are performed by contractors and extend the warranty and support and software update.
3.4 Support
A central technical support is established for customers and contractors, which can be reached by all communication media. Through the support all technical messages are issued, software up-dates are performed, problems are analyzed and solved. This service also controls the remote object monitoring.
3.5 Spare parts sale
Contractual partners handle sales of spare parts, accessories and accessories. Each contractual partner maintains an ET warehouse with service and wear parts on site.
3.6. Spare parts warehouse
Vertriebsgesellschaft mbH organizes ET logistics and invoicing and maintains a small warehouse for promotional material. ET supplies will be delivered directly to contractors by suppliers after ordering through the central ordering system.
3.7 New or further developed parts, supplies, accessories
Enhanced and new parts, accessories, interiors, exteriors and accessories will be offered and sold to customers through distribution network.
3.8 Software Update or Customization
Software and hardware is continuously developed, financed through annual flat rate and distributed through support.
3.9 Remote monitoring
Remote monitoring from the building is offered as a paid service, managed through support and implemented with regional monitoring services. Remote data monitoring secures all house functions, analyzes and repairs all software errors and reports possible hardware problems to responsible distributors. This service is also financed with the annual flat rate.
4. Potential market
4.1 Open-minded, technically modern thinking people who want to combine beauty and elegance with practicality and high quality and who wants to show it to the outside world.
First and faremost, the Crystal Palais is offered to private individuals. Primarily to people who are technology lovers, are well acquainted with digital media, use them for work or education and do not want to live in densely populated residential areas. Their practice of the profession does not depend on the place. They will be nature-loving and environmentally conscious individuals and families, but technophiles who do not want to give up all-round service comfort.
4.2. as a residential building, residential building with house offices, studio, exhibition space
The Crystal Palais is a concept for the next digital smart-people future, which is already being pushed hard in Europe. Working behavior will totally change. It will no longer be heavily dependent on locations, the high quality education system will use digital networking, permanent jobs will be transformed into self-employment, project team assignments will gain importance, not only in business but also in public administration sphere to save costs and time, etc.
The Crystal Palais is designed in such a way that on the ground floor a large living and communication area is organized with a connection to the nature and which communicates with the ground floor through the open gallery. The rooms on the gallery are visually connected together, but can be acoustically separated by the sliding glass walls. They are placed in such a way that the projection screen is visible from every place to participate in video conferences directly from the workplace. Due to the open-plan concept with glass walls, one has a view of all the events in the house.
As a family house, the Crystal Palais is also interesting because the family lives in a common open space, and yet everyone can withdraw into their own privacy and enjoy this solitude.
4.3 Living in the open air
As people spend more time in the house in the future, they also want to experience more communication with nature. The glass walls, which can be opened completely, create a perfect connection of the indoor and outdoor world. This system could even make it possible to save yourself an outdoor terrace that you have to constantly move out and around to enjoy a few moments on nice days.
The living concept is also a dream for children, as they can be inside the house, with three levels, ground floor, ground floor, café, and a circular gallery walkway around which they can run, and exit directly from the living area into the greenery.
4.4 International
We would like to establish the distribution of Crystal Palais in Europe first and expect to split the component production later to shorten delivery distances.
5. New products
5.1 Country House
After the successful market launch of Crystal Palais, we plan to further develop the product range with the system and launch new products.
5.2. Cubist style studio
New products with our concept and technology will also find a place in the working environment.
6. Brand building
6.1. Advertising
We divide advertising measures into three categories: 1. time advertising, 2. competence advertising, 3. art advertising. All three categories diffuse and we only use the priority of each category. For category 1, time advertising, the priority of an advertising action is the time investment. The second category is determined by the actor performing the advertising action. The 3rd category is about substance of the advertising measure.
First, a brochure with detailed product, function, construction technology, sales and marketing description is issued to suppliers, distributors, authorities, financial services. Only after the construction of the model house, a product advertising with product introduction is directed to professionals, colleges specialized media, targeted, to then use the professional opinions in public advertising. The public advertising is subsequently targeted with sales partners, suppliers, financial service providers. Only to the public advertising phase an Internet side is released and thus Internet advertisement begins over virtual media with invitations to the inspection of the model house.
6.2 Trade fairs
Regional, national and international trade fairs are important venues for our product advertising and presentation. For the presentation we want to produce a model house on a scale of 1:30 in cooperation with technical schools. In cooperation with a media graphic design school we want to produce a virtual presentation.
6.3 Promotional items
Promotional brochures will be offered to end customers in paper and virtual form.
6.4. Life accessories
Life accessories support personal identification with the brand. We will have them produced to order.
6.5. Owners club
Since Crystal Palais is an emotional, long-term and a multi-generational product, we try to connect our customers and homeowners in a casual, informal way, to give them the opportunity to exchange life experiences, make friends and also to include experiences, wishes, suggestions and criticism in the further development. The club is also an important after sales platform.
7. Production
7.1 Suppliers with exclusive supply contracts
We want to conclude exclusive supply agreements with suppliers in order to achieve high product quality, to involve them in development processes for existing and new components, but also to guarantee them future security for their investments. As we want to win as many suppliers as possible also as contractual partners, the cooperation will reach a higher level.
7.2 Order and delivery coordination
The complete construction orders are completed by contractual partners according to predefined software specifications with the customer and forwarded to VGmbH in online copy. After clarification of financing, the customer receives an order confirmation and thus the order becomes valid. After receiving the building permit, the first down payment of EUR 20k is due in order to excavate the foundation pit. In the meantime, VGmbH will prepare the delivery logistics in the given delivery scheme. The second down payment, in the amount of the kit price, will determine the delivery to the construction site. The assembly production takes about 10 working days. The final payment is due immediately after delivery. After the final payment is received, the software is activated, the system is configured with passwords and all documents are handed over to the customer.
7.3 Software Online Ordering System
The software Loco-Soft from Softwarehaus in Lindlar will control the complete process. The software communicates in four languages: German, Czech, Polish and Slovak.
8. Distribution
8.1 Independent contractors for sales, production, assembly and service
The distribution is established with an independent contractor for an area of responsibility. Mainly small companies, which also produce some components for the Crystal Palais and deliver them to the system. They are distributors and exclusive suppliers at the same time. The contractual partners organize the sales, the construction preparations, the assembly and the lifelong service independently, according to the guidelines of the VGmbH.
8.2 Customer financing
Contractors will also offer product financing or leasing to their customers. Financing, leasing, and insurance service will be offered in modular form in mediation contract with renowned banks and insurance companies.
8.3. Profit and loss statement for contractors
8.4. Forecast

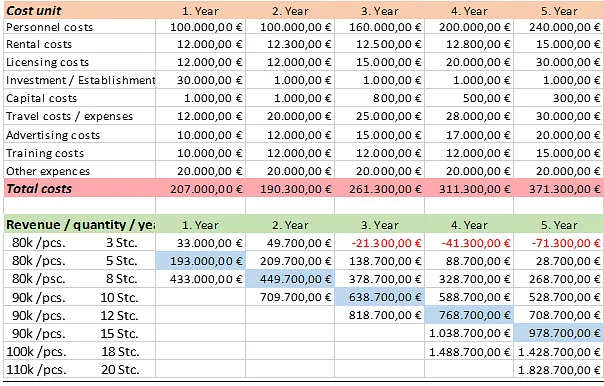

In the table, only assembly-maintenance work and accessories are included. In addition, there are other revenues from financing, insurance, construction preparation, foundation pit, access, access roads, property exterior lighting, planting, etc. according to the creations of the distributors. Since the house is planned for long life and always exists in the distributor area, there will also be repairs with ET sales, interior renovation and other ways to increase income. In addition, the real estate trade with the already existing Crystal Palais' will also benefit the contractor.
An installation team can install up to 15 Crystal Palais in one year with good logistics planning. As the assembly takes place on site in an inflatable and heated tent, the construction season can be extended to 30 weeks per year.
1. High-tech attractive building for living, working, business and relaxing in ellipse shape
1.1. Shape, architectural style, building technology, material
The shape of the building was designed according to several criteria in order to achieve maximum position flexibility in all cardinal directions. The other criteria are: High aesthetic00000, lightness of form due to wall curvature, high static strength against lateral wind pressure, maximum use of floor space, unconventional interior design. Eight columns dividing and delimiting the outer wall surfaces give the building stability and neutralize lateral and rotational forces, which otherwise have to be stiffened with diagonal struts in such constructions. The columns, which contain various spaces, are the main supporting elements of the building. The protrusion of the columns from the walls allows for a roof protrusion that serves as rain and sun protection for the glass walls. The color coordination between the blue glass surfaces, silver metallic painted column exteriors, and white lattice sheet protective walls adds a high-end touch to the design.
Compared to a rotunda shape, the elliptical design allows for a slender structure, better interior partitioning and larger radius of exterior walls. The ellipse construction style is also repeated in interior spaces of the building. The large radius is important for the stability of the building exterior walls and exterior wall elements.
Wooden supporting structure is invisibly integrated in the building. The horizontal beams made of laminated veneer lumber are flexibly prestressed with steel bars to prevent bending. During service, the prestressing is regularly checked and retightened if necessary. The roof support beams are covered with mirrors from below, making them invisible in the room.
The outer walls are formed of wooden window frames with appropriate radius, clad on both sides with ESG flat glass panes cold-bent to the frames and glued airtight with pretension. Visible inner surfaces of the window frames are covered with a mirror-polished 0.5mm thin stainless steel sheet. The three components: Glass pane, wooden frame and the sheet cladding are glued together with a special flexible PUR glue in the thickness of 5mm. In addition to vacuum tightness, the bonding also guarantees flexibility in case of expansion of the three materials. It also provides sound and temperature insulation. The bonding contact surfaces of the glass panes are specially coated with an enamel ceramic layer applied at high temperatures to guarantee long-term stable bonding. The mirror-polished stainless steel cladding of the interior window frames guarantees vacuum tightness and makes the wooden frame visually disappear into the room, becoming invisible.
The exterior and, in some cases, the interior surfaces of the columns and also other interior walls are clad similarly to the window frames, but instead of glass panes, laminated plywood panels are used, which are painted with metallic lacquer to a high gloss. The vacuum wood frame interiors are then clad only with thin galvanized sheet metal. Interior walls, floors and ceilings in the bathrooms are covered with painted, toughened glass and underlit.
The production process of glass roof windows is similar to that of side windows. They are glued into molded roof beams in a watertight manner. The edges and the glass pane joints are glued together with water drainage edges and strips made of stainless steel sheets. Thickness of the outer glass panes is increased from 6 to 8mm compared to the window panes to provide more impact resistance. The curvature of the roof glass panes also increases the stability and impact resistance, apart from raising the visual attractiveness. Rainwater is channeled with the edge strips through the protective wall profiles into the water tanks in foundations, filtered and reused for washing the roof and garden irrigation through high-pressure nozzles.
The bottom chamber is hollow made of glue laminated wood beams and laminated plywood panels glued with flexible PUR and acrylic glue. The lower chamber is vacuum-sealed and provides insulation. Floor heating radiators and air ducts are installed in the upper chamber. Floor surface consists of two-barrier boards glued together, wood veneer on the surface. Carbon heating foils are glued in position between the two barrier plates. The floor slab rests on footings made of fit-formed concrete sections, separated with rubber expansion plate and completely bonded to the footings.
The foundations are bolted together from reinforced concrete right corner profiles and form a grid structure with eight concrete boxes under the supporting columns. Under the wooden floor slab, there are hollow chambers connected together in the grid foundation, which form an air cushion separation from the ground. In the cavities there are laid all the water, sewage, electric and air pipes. The latter lead the used air of the kitchen extractor, the house ventilation system and the exhaust gases from the mini - CHP into the foundation sidewalls, which run out underground around the house and under the driveway and entrance. The soil heating around the house, at driveway and access areas will provide improved growing climate with the waste heat and more thermal protection in winter. The foundations will also be better protected against frost in winter. The stale air is enriched with higher CO2 and NOx content and also acts as fertilizer for the planting all around.
The foundation pit is excavated to the depth of 1.2m, filled with 20cm antifreeze layer, compacted, laid with separating layer foil, leveled with a sand layer, leveled horizontally and compacted. The foundation grid is screwed together, aligned, the pipes are laid and filled up to 2/3 with coarse crushed stone as a heat storage layer.
1.2. Passive house with own energy supply
The Crystal Palais is a high-tech passive house with its own energy management. Energy efficiency is achieved in the Crystal Palais differently than in conventional construction. The complete glass cladding including the roof forms enormous potential of light and heat energy in the interior of the building, which serve as the main energy sources in the one-room house.
The vertical solar and privacy window blinds are covered with solar cells and the produced el. electricity is stored in storage batteries. The surplus is used for heating water. The shading of the glass roof is ensured by interior roof blinds made of solar foil, which also supply the house with electrical energy. The heat under the roof is extracted by air-water heat pump through integrated channels and directed to the hot water tanks in the foundations. At the same time, the system functions as an air conditioner and is fully integrated into house ventilation system. The extracted cold is also used for cold storage, which is positioned in the middle of the house between the garage and the kitchen. The cold room is at the same time a cold accumulator and can quickly supply a lot of cold to the house ventilation system. This, in turn, is similar to the heating system and can thus quickly respond to the change in indoor temperature. The whole heating-ventilation-climate system is integrated into the building and the components are made to fit the building.
In the column foundations are installed 4 water tanks for low temperature and 4 water tanks for high temperature water with total volume of 11,5m2. All tanks are connected with pipelines and controlled with solenoid valves. As a result, the floor heating can be alternately tempered with low-temperature water as needed or quickly heated with high-temperature water, thus reacting quickly according to demand and sunshine. This saves heat energy, which would be necessary for constant tempering. The floor heating radiators are positioned in the cavity of the floor in such a way that they not only emit a radiant heat, but also function as a heat exchanger. Air is blown into the floor cavities by ventilation fans and is led into the houserooms through the dampers, usually under side windows. As mentioned above, carbon-heating mats are still glued in the floor slab, which with the surplus from the el. current allow the floor surface in the residential - exposed positions a pleasant heated surface. The carbon heating mats are also used to heat the floors, ceilings and sidewalls in bathrooms.
In addition, the house is equipped with a mini CHP, which as an additional, and also, reserve energy source, ensures the energy house management. In addition to electrical and thermal energy, the CHP generates mechanical energy necessary for the production of compressed air, vacuum and refrigeration, and supports energy needs during peak periods, such as rapid charging of electric vehicles, etc. The CHP running on bioethanol provides 30KW of mechanical energy and 60KW of thermal energy and can be additionally supported with hydrogen from its own hydrogen cell, thus reducing the consumption of bioethanol. The bioethanol is also used in open fireplaces as an additional decorative heating source.
1.3. Controlled heat, cold and sound insulation
The vacuum cavities in the windows, roof, column and partition walls and floor slab provide heat and sound insulation, which is dependent on vacuum strength. This makes the insulation controllable as needed in summer, winter, day and night. For example, the floor slab is filled with vacuum only in winter and not in summer, so that it is cooled by the ground.
The entrance doors and all windows are double-hermetically sealed with air pressure seals and allow controlled natural house ventilation. Between the air pressure seals is an insect membrane, which protects against the penetration of insects into the interior of the house.
1.4. Automation
Building automation functions as a totality of monitoring, control, regulation and optimization equipment in the building, garden, and immediate surroundings of the building. It is thus an important component of technical facility management. Functional processes are carried out independently (automatically) across all trades, according to predefined setting values (parameters), in order to simplify their operation or monitoring. All sensors, actuators, control elements, consumer and other technical units in the building, such as ventilation, heating, energy generation and distribution, are networked with each other. Processes can be combined in scenarios. A characteristic feature is the decentralized arrangement of the control units (DDC-GA) as well as the continuous networking by means of a communication network and bus system.
The power grid in the Crystal Palais is distributed in five voltage fields to ensure optimal supply with simultaneous economy and safety. The DC 24V network serves interior and exterior lighting components, all sensors, actuators, controls and control drives, and additionally all carbon heating mats installed in bathroom floors and ceilings. The DC-100V network supplies all other carbon heating mats to reduce cross-section of wiring cables. DC-400V network is used to charge electric vehicles, which are also additional power storage to increase the total storage volume of home batteries. AC 230V and 400V is responsible for all standard household appliances and power tools. The cable lines are partially integrated into the walls and floors and are connected with connectors or connected into the distribution boards during house installation. A separate network with KAT7 cable is laid for the data supply.
The complete control system is operated via a house server with fixed built-in and also with mobile control elements such as laptops, tablets, smartphones and can also be connected to remote monitoring.
The automatic house control system includes the following functions:
a. Opening, closing monitoring and locking of entrance door, garage door, all wall windows and their compressed air seals;
b. Shading with vertical blinds and roof blinds;
c. Lighting exterior, interior including light color change, lighting dimming is controlled by time, sunlight and motion;
d. Turning household appliances on and off, remote control and monitoring;
e. HVAC complete control according to time, outdoor temperature, sunlight, premises, space, energy availability;
f. Monitoring system with advance warning and storage of sounds and images inside and outside, in the environment, residential scenario replication, remote monitoring;
g. Audio and video control, house individual and group communication;
h. Energy production control and monitoring;
i. Indoor and outdoor plant watering, indoor and outdoor fountain control;
j. Roof cleaning and garden watering, access path and driveway cleaning.
1.5 Overview of new solutions
Exterior walls and roof made of large flat glass panes ESG cold bent and glued to wooden frames.
Controlled vacuum heat and sound insulation of the floor, roof, side walls and partition walls.
Windows, doors sealed with controllable compressed air seal.
Interior energy recovery of sunlight and solar heat. Vertical blinds made of photovoltaics, roof blinds made of solar film.
Combination of heat recovery with air conditioning.
Consumed air with residual heat of ventilation, kitchen hood and exhaust gases of CHP is discharged into the ground under the floor slab and house environment for heating and fertilizing.
Horizontal supporting beams with adjustable bending strength.
Ellipse building style.
2. The building as a series product with selectable accessories
2.1. Exterior color combination
The exterior wall glass panels can be combined as desired in all available float glass colors and coatings. For the model house, the discreet glass color blue without coating is selected. The exterior glass panes for bathrooms in the side columns are covered with foil with silver mirror effect to reduce transparency and to match the side walls of the columns, which are painted silver. Visibility is also reduced by protective walls in front of the columns made of white expanded metal sheet. The supporting aluminum profiles are natural anodized and create a smooth transition from white to the silver walls of the columns. The glass band between the floors is covered with mirror-effect film, as are the entrance and garage doors and the glass panels above on the upper floor. The blue effect of the side walls is emphasized by the blue solar cells on the vertical blinds. Automation eliminates the need for any hardware on the windows and doors. The narrow edge trims on the outer roof edge and the upper roof step emphasize the shape and are made of natural stainless steel.
2.2. Interior surfaces, walls, floors, design, room layout
The Crystal Palais is designed as an open-plan gallery building. The partition walls are mostly constructed of glass as sliding walls, and together with the glass roof and glass side walls, convey an unlimited living space directly in the open air. The transitional surfaces between the exterior and interior also emphasize the impression. The house access and building entrance is laid out with the same granite stone paving throughout to the living interior. In connection with the natural stone floor in the first floor living space, large-scale veneered blocking panels have a noble effect and visually enlarge the living space. The plant beds placed at side windows, connect boundlessly the interior space to the outside. Vertical blinds with solar cells ensure protection from view and shade on the outer walls, and according to your wishes, they are offered in various designs, colors, materials to choose from. Electric roof blinds made of solar film ensure privacy and shading from above, and can also be ordered in various patterns and colors. Interior walls, floors and ceilings in bathrooms covered with under-lit glass panels are printed with panoramic images to give an impression of "bathing in the open air". Gallery railings on DG are mounted from curved ESG panes and have a neutral effect in the room. Staircase made of glass lamellae is also matched to this. Wooden stair treads are alternately dark and light wood veneer framed with white high gloss plastic edges and follow the ellipse style, centrally connected with supporting elements of cut crystal glass, also in ellipse style. Floors in DG are, as well as in EG, are covered with large light wood veneered plywood panels and complete the elegance of the interior.
The garage is separated from the living room with a glass wall and connected on the dining room side with a glass door. The garage can also function as an exhibition, for example, for classic cars and thanks to two lifting platforms can accommodate up to 5 vehicles or can be designed like an orangery. The ceiling height in the garage is increased to 3.50m. Two storage rooms are integrated to the garage and to the rear kitchen wall. One of them serves as a cold room and cold storage room at the same time.
Above the garage there are two bedrooms, separated by a bearing wall, with separate bathrooms and toilets. Access to the bedrooms, as well as to the gallery, is through the so-called " café" above the kitchen. The four rooms in the attic are separated with fixed bearing wall and sliding glass walls offer excellent view not only to the outside, but also to the inside of the house. The partition between the "café" and the bedrooms is designed as a projection wall. This is visible from all sides of the living room. The space above the entrance on the gallery is open and planned as an office. Four bathrooms with toilets are integrated in the side columns in the DG. In ground floor in the right column is a guest toilet also with shower as above. In left is placed a utility room. In the garage columns there are tool and equipment rooms. It is possible to enter all four side columns also from outside. In the entrance column on the right is checkroom and on the left server-house connections-control equipment room. Above is a room for books, files, office machines and audio-video equipment. Columns in the garage entrance house heating equipment and the upper ones in the bedrooms serve as dressing rooms.
2.3. Equipment, interior decoration, fitting furniture, lighting, audio and video selection
Vybavení domu, stejně jako celá budova by měla zprostředkovávat uklidňující dojem bydlení ve volné přírodě, nabídnout spoustu prostoru pro život a vyzdobit interiéry nádhernými motivy z přírody. Podél oken jsou nasazené exotické ovocné stromy , keře a květiny, ve vchodu fontána a pod vnitřním schodištěm malá zeleninová zahrádka.
Design vnitřního vybavení je navržen ve stylu elipsy a je k dispozici v různých barvách, variantách a tvarech. Vzhledem k tomu, že se v Crystal Palais nenacházejí žádné obdélníkové prostory je nábytek také přizpůsoben elipsovému stylu, a to všechno ale nebrání tomu, aby nebyl navrhován a nabízen v široké škále architektonických stylů, jako jsou moderní, venkovské, futuristické a podobně.
Kompletní osvětlení je založeno na technologii LED s 24 V. Prostřednictvím skleněných stěn zajišťuje venkovní dekorační osvětlení příjemné osvětlení interiéru, které spolu s podsvícením vnitřních hran vytváří příjemnou světelnou ambientu. Obývací pokoj a jídelna jsou osvětleny stejnými podvěšenými stropními světly. Velkoplošné skleněné tabule budou potištěny s různými obráz
y z přírody nebo kosmického prostoru , které současně zajišťují zakrytí ventilačních kanálů. První poschodí osvětlují řízená integrovaná světla v rámech střešních oken. Hlavní vchod a kuchyň jsou 10
vybaveny bodovým osvětlením. Ve středu obývacího prostoru, nad schodištěm do „Café“, je zavěšen ze středu skleněné střechy přes patro velký křišťálový lustr a osvětluje centrálně celý obývací prostor.
Systém audio/video je nainstalovaný v horní části levého vstupního sloupu a ovládá se dálkovým ovládáním. Prostorové reproduktory jsou integrovány do podlahy na poschodí nad vstupem a stereofonní poslechový bod je nastaven na „ Café“ . Pro video jsou ještě dodatečně naistalovány pod schody galerie další reproduktory. Projektor (beamer) lze také integrovat do křišťálového lustru.
3. Sériový produkt s kompletním servisem
3.1. Produkce na sklad pro rychlé dodací lhůty
Crystal Palais je sériově vyráběný dům , který je na stavebním pozemku sestavený z co nejvíce možných hotových komponentů ve velmi krátké době. Základové, zemní a pozemní práce budou prováděny smluvními partnery, aby se zajistily statické požadavky pro hotové komponenty. Dodavatelé, kteří jsou obvykle také smluvními partnery, udržují skladem v době stavební sezóny alespoň jednu kompletní stavební sadu, aby se dosáhlo rychlých dodacích lhůt.
3.2. Kompletní stavební servis
Místní smluvní partneři nabízejí kompletní stavební servis, od výběru patřičného pozemku, pořízení pozemku, financování, stavebního povolení , dokončení exteriéru, nastěhování a podobně.
3.3. Roční zákaznický servis
Crystal Palais je vysoce technický produkt, který potřebuje pravidelně předepsaný systematicky naplánovaný zákaznický servis, aby byla stále zajištěna vysoká kvalita tohoto výrobku. Servisní práce zahrnují kontroly mechanických, elektrických, pneumatických a vakuových komponentů; čištění a mazání, zkoušky těsnosti klimatizačních systémů, vedení stlačeného vzduchu, vakuové vedení, vakuová čerpadla; výměna oleje ve spalovacím motoru-BHKW a kompresoru včetně výměny filtrů. Zákaznické servisy budou pravidelně prováděny smluvními partnery a prodlouží záruku, podporu (support) a aktualizaci softwaru.
3.4. Podpora (Support)
Pro zákazníky a smluvní partnery je zřízena centrální technická podpora, která je přístupná všemi komunikačními prostředky. Prostřednictvím této podpory budou vydávány všechny technické zprávy, aktualizace softwaru a budou analyzovány a řešeny všechny problémy. Tato služba také řídí a ovládá vzdálené monitorování objektu.
3.5. Prodej náhradních dílů
Prodej náhradích dílů, příslušenství a doplňků bude zajištěný prostřednictvím smluvních partnerů. Každý smluvní partner udržuje sklad náhradních dílů se servisními díly.
3.6. Sklad náhradních dílů
Prodejní společnost mbh organizuje logistiku a fakturaci a také udržuje malý sklad pro reklamní materiály. Dodávky náhradních dílů budou dodavatelé dodávat přímo smluvním partnerům prostřenictvím centrálního systému odjednávek.
3.7. Nové nebo dále vyvinuté díly, příslušenství, doplňky
Nové díly a dále vyvinuté díly, vnitřní zařízení, interiérové a exteriérové vybavení a příslušenství budou nabízeny a prodávány zákazníkům prostřednictvím distibuční sítě smluvních partnerů.
3.8. Aktualizace nebo přizpůsobení softwaru
Software a hardware jsou neustále vyvíjené, financované ročně paušální sazbou a distribuované prostřednictvím podpory (support).
3.9. Dálkový monitoring
Dálkový monitoring budovy je nabízený jako placená služba, řízená prostřednictvím podpory a realizována pomocí Regionální bezpečnostní služby. Dálkové monitorování zabezpečuje všechny domácí funkce, analyzuje a opravuje všechny softwarové chyby a hlásí případné hardwarové problémy odpovědným distributorským partnerům. Tato služba je také financována roční paušální sazbou.
4. Potenciální trh
4.1. Otevření , technicky moderně smýšlející lidé, kteří chtějí spojit krásné, elegantní s praktickým a vysoce kvalitním a nemají problém se tím také prezentovat navenek.
V prvé řadě bude Crystal Palais nabízený soukromým osobám. Zejména lidem, kteří mají rádi techniku, jsou dobře obeznámeni s digitálními médií, které používají k práci nebo k vzdělávání a nechtějí žít v hustě obydlených oblastech. Jejich výkon povolání není závislý na místě bydliště. Lidé a rodiny, kteří milují přírodu, nicméně jsou technofilní a nechtějí se vzdát kompletního servisního komfortu.
4.2. Jako obytná budova, dům s integrovanými kancelářemi, ateliérem a výstavní plochou
Crystal Palais je konceptem pro nastávající budoucí digitální inteligentní budoucnost, která je nyní v Evropě velmi silně podporována. Pracovní nasazení a take nastavení se naprosto změní. Již nebude tak silně závislé na průmyslových lokalitách. Vysoce kvalitní školní systém bude využívat digitální sítě, také stálá pracovní místa se budou proměňovat na samostatnou výdělečnou činnost. Zakázky projektových týmů budou stále důležitější a to nejenom v podnikání, ale také ve veřejné správě, aby se šetřily náklady a čas atd.
Crystal Palais je navržen tak, že v přízemí se nachází velký obytný a komunikační prostor s přístupen k přírodě, který komunikuje s podlažím na poschodí prostřednictvím otevřené galerie. Prostory na galerii jsou opticky spojeny, ale akusticky oddělené skleněnými posuvnými stěnami. Jsou umístěny tak, že projekční plátno je viditelné z jakéhokoliv místa na galerií, aby se mohli všichni účastnit videokonferencí přímo z pracovního místa. Prostřednictvím otevřeného konceptu se skleněnými stěnami je zajištěný přehled o dění v celém domě.
Jako rodinný dům je Crystal Palais také zajímavý tím, že rodina žije ve společném velkoprostorovém domě, ale přesto se každý může stáhnout do svého soukromí a užít si soukromí s výhledem na přírodu.
4.3. Bydlení ve volné přírodě
Vzledem k tomu, že v budoucnu budete trávit více času v domě, budete také chtít více komunikovat s okolní přírodou. Prostřednictvím velkoplošných skleněných oken, které lze zcela otevřít, se vytváří dokonalé vizuální spojení vnitřního i vnějšího prostoru. Tento systém nahrazuje venkovní terasu, která se musí stále udržovat a sklízet, aby bylo možné si užít několit okamžiků krásných slunných dnů.
Dokonce i pro děti je takový koncept bydlení snem, protože se mohou pohybovat v domě se třemi výškovými úrovněmi, přízemím, poschodím , Café a elipsovitou galerií, kterou mohou proběhnout dokola a z obytného prostoru v přízemí přímo vyběhnou to zahrady.
4.4. Internacionální
Distribuci Crystal Palais bychom chtěli nejprve rozvíjet v Evropě a počítáme s pozdějsím rozdělením produkce komponentů pro zkrácení dodávkových tras.
5. Nové produkty
5.2. Venkovská vila
Po úspěšném uvedení na trhu Crystal Palais plánujeme pokračovat v budování sortimentu a přinášení nových výrobků na trh.
5.3. Ateliér v kubistickém stylu
Po úspěšném uvedení na trhu Crystal Palais plánujeme pokračovat v budování sortimentu a přinášení nových výrobků na trh.
6. Budování značky
6.2. Reklama
Reklamní opatření jsou rozdělena do tří kategorií na : 1. Časovou reklamu, 2. Kompetenční reklamu, 3. Stylovou reklamu. Všechny tři kategorie se prolínají, ale my určíme pouze prioritu jednotlivé kategorie. První kategorie určuje čas nasazení reklamy, v níž je časové nasazení prioritou reklamního opatření. Druhá kategorie určuje účastník, který reklamu provádí. 3. Kategorie se týká podstaty reklamní kampaně.
Za prvé bude vydaný prospekt s podrobným popisem funkcí, stavební technologie, prodejními a marketingovými popisy pro dodavatele, distribuční partnery, úřady, finanční služby atd. Teprve po výstavbě prezentačního domu bude cíleně zaměřená prezentace pro odbornou veřejnost, odborné media, školy, aby se pak jejich názory použily pro veřejnou reklamu. Veřejná inzerce je následně používána kontrétně s distribučními partnery, dodavateli, poskytovateli finančních služeb. Teprve ve veřejné reklamní fázi bude aktivována internetová stránka a tím se spustí internetová reklama a prostřednictvím virtuálních médií se začne s pozvánkami na návštěvu prezentačního domu.
6.3. Výstavy
Regionální, národní a mezinárodní výstavy jsou důležitými místy pro reklamu a prezentaci našeho produktu. Pro prezentaci chceme vytvořit model domu v měřítku 1:30 ve spolupráci s technickými školami. Ve spolupráci s mediální grafickou školou chceme vytvořit virtuální prezentaci.
6.4. Propagační předměty
Pro konečné zákazníky budou nabízeny v papírové formě a virtuálně reklamní letáky.
6.5. Osobní doplňky
Osobní doplňky pro životní styl podporují osobní identifikaci se značkou, které se budou vyrábět na zakázku.
6.6. Klub vlastníků
Vzhledem k tomu že, Crystal Palais je emoční, vícegenerační a také vícenárodnostní produkt, snažíme se spojit své klienty a vlastníky domu přirozeným a neformálním způsoben a dát jim příležitost sdílet své životní zkušenosti, uzavírat přátelství, vyslovit přání, návrhy a kritiku a zapojit je do dalšího vývoje. Klub je také důležitá After Sales-platforma.
7. Produkce
7.2. Dodavatelé s výhradními smlouvami o dodávkách
S dodavateli chceme uzavřít výhradní smlouvy o dodávkách, abychom dosáhli vysoké kvality výrobků, integrovali je do vývojových procesů pro stávající a nové komponenty, ale také zajistili jejich budoucí investiční bezpečnost. Protože chceme získat co nejvíce dodavatelů jako smluvních partnerů, spolupráce dosáhne vyšší úrovně.
7.3. Podmínky objednávky a doručení
Kompletní stavební objednávky budou provedeny smluvními partnery podle předem stanovených specifikací softwaru, se zákazníkem uzavřeny a předány v online kopii na VGmbH. Po upřesnění financování obdrží zákazník potvrzení objednávky a tak vstoupí objednávka v platnost. Po získání stavebního povolení je první záloha ve výši 20 tisíc EUR určena k výkopu základové jámy. V mezičase společnost VGmbH připraví dodávkovou logistiku v předem stanoveném rozvrhu dodávek. Druhá záloha, odpovídající ceně stavební sestavy, určuje dodání komponentů přímo na stavební místo. Montáž komponentů bude trvat přibližně 10 pracovních dnů. Konečná platba je splatná okamžitě po předání. Po zaplacení poslední platby bude aktivované software, celý systém bude nakonfigurován s hesly a zákazníkovi budou odevzdány všechny dokumenty.
7.4. Software Online-objednávkový systém
Software Loco-Soft od softwarové společnosti z Lindlar bude řídit celý proces. Tento software komunikuje ve čtyřech jazycích: němčina, čeština polština a slovenština.
8. Odbyt
8.2. Nezávislí smluvní partneři pro prodej, výrobu, montáž a servis
Prodení síť bude vybudována s nezávislými smluvními partnery pro určenou oblast. Především malé firmy, které take vyrábějí některé komponenty pro Crystal Palais a dodávají do systému. Oni jsou současně smluvními partnery a exkluzivními dodavateli. Smluvní partneři organizují prodej, stavební přípravu, montáž a celoživotní servis podle pokynů VGmbH.
8.3. Financování pro zákazníky
Smluvní partneři budou také svým zákazníkům nabízet financování produktů nebo leasing.
Financování, leasingové a pojišťovací služby budou nabízeny prostřednictvím zprostředkovací zakázkys renomovanými bankami a pojišťovnami v modulární podobě.
8.4. Výkaz zisku a ztráty pro smluvní partnery
8.5. Prognóza

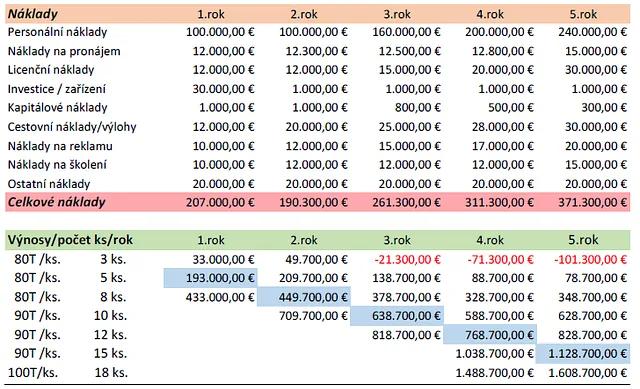

V tabulce jsou obsaženy pouze montážní práce, servisní práce a příslušenství. K tomu se musí také
připočítat další příjmy z financování, pojištění, stavební úpravy, příprava základů, přístupové a příjezdové cesty, exteriérové osvětlení, výsadba a podobné, podle kreativity smluvních partnerů. Vzhledem k tomu, že dům je plánováný z dlouhou životností a stále zůstává v určené oblasti smluvního partnera, budou zde také opravy, prodej náhradních dílů, obnova interiérů, další možností zvýšení výnosů smluvních partnerů. K tomu příjde také obchod s nemovitostmi s již existujícím Crystal Palais‘.
Jeden montážní tým může v jednom roce sestavit s dobrým logistickým plánováním až 15 Crystal Palais. Vzhledem k tomu, že montáž na místě probíhá v nafukovacím a vyhřívaném stanu, může být stavební doba prodoužena na 30 týdnů ročně.
